HGDO 12” 4K 3840×2160 Car DVR Video Recorder GPS Tracking Sony IMX415 Rear View Mirror Camera 1080P Dashboard Cam Auto Registrar.
Chip: HISILICON 3559V200
Display: 12 inch
Memory card: Class 10 TF card(8-64GB)
Video resolution: 3840×2160(4K) & 1920x1080P
Video Encode: H264/ H265
Camera Lens: Sony IMX 415
Time-Lapse : Off/ 1S/ 2S/ 3S
Parking Guard: Off/ Low/ Middle/ High
Screen Saver: Support to set the time when the screen turns off automatically
Frequency: 50HZ/ 60HZ
Key sound: ON/ OFF
Boot sound: ON/ OFF
Speaker Sound: Mute/ Low/ Middle/ High
G-sensor: Off/ Low/ Middle/ High
3 options of sensitivity Lens: 8M pixels,170 degree HD wide angle Seamless video: No interrupt video
Loop video: Optional 1/2/3/5 min, new file auto overwrites old file when card is full.
Button Sound: Turn on/off
Date/ Time: Support
2 split view display simultaneously: Support
Language: Chinese, English, Russian, Japanese, Thai, Spanish, Italian, French, German , Polish, Korean, and so on.
Battery: Build-in lithium polymer battery
Car USB power: 5V
Working temperature:-20℃ to 70℃
Storage temperature:-30℃ to 80℃
Installation type: Rearview mirror Camera
Urgent Video Mode: Support locking emergency video.
Video Playback on the Mirror: Front urgent Video, Front Ordinary Video, Rear Ordinary Video, Rear Urgent Video
Photo Playback on the Mirror: Front Photo/ Rear photo.
4K Camera, GPS Track, Over speed Remind, Streaming media rearview, Excellent night vision, Reversing video, 24h Parking monitor, Collision sensor, Front and rear dual video, Loop recording, Adjustable view angle, Special mounting holder
D688 mirror, GPS antenna, 1080P rear camera + rear cable, car charger, user manual, rubber bands, crowbar, card reader, dashboard holder, connection plate, non-slip mat, screws
12 Inch Full View Screen: 12-inch Full View Touch Screen provides crystal image without any delay. Very clear and smooth images display as like a stream flowing on the excellent WDR and Auto Adjusting Brightness Streaming Mirror.
Mount on Dashboard:
There are two installation method:
Method1: Rubble Straps installation Fix our car dvr on your original rearview mirror.
Method2: Install our special dash board holder, then put it on the dashboard.
Huawei HI-Silicon Chip
Using Huawei HI-Silicon 3559v200 chip, the operation is smoother, the menu response speed is more sensitive, the shooting does not drop frames, the system is more stable, and the service life is long.
Newest SONY IMX 415 Lens
Using the latest SONY IMX 415 lens, it is clearer than IMX 335, the color of the recorded video is more realistic, and the night vision effect is better.
4K 3840×2160P Ultra HD Video
With 4K 3840×2160 Ultra HD resolution, With the high-sensitivity sensor, this car camera can perform the higher quality and vivid images and videos. it can sense the surrounding environment and delicately handle complex light. With fast image capture rate and image processing capability, it can enhance image clarity to perform more naturally vivid and lifelike image quality.

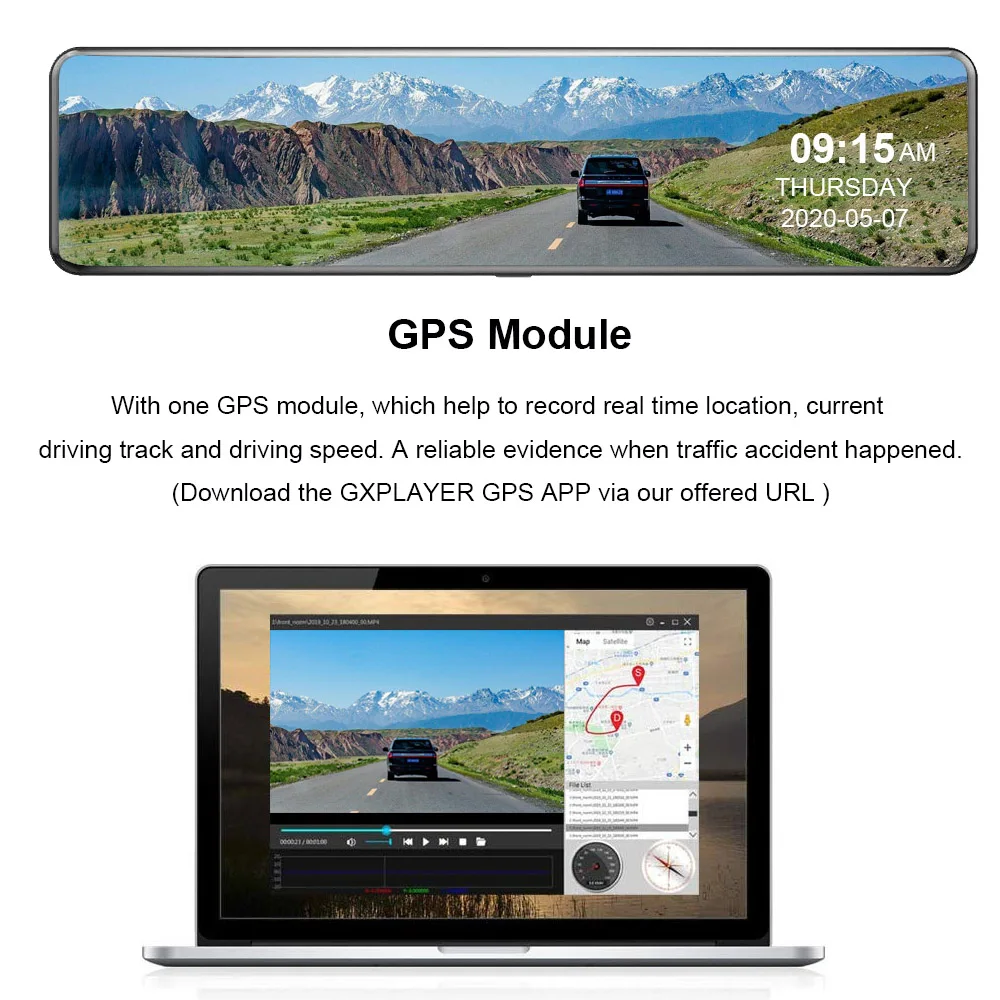

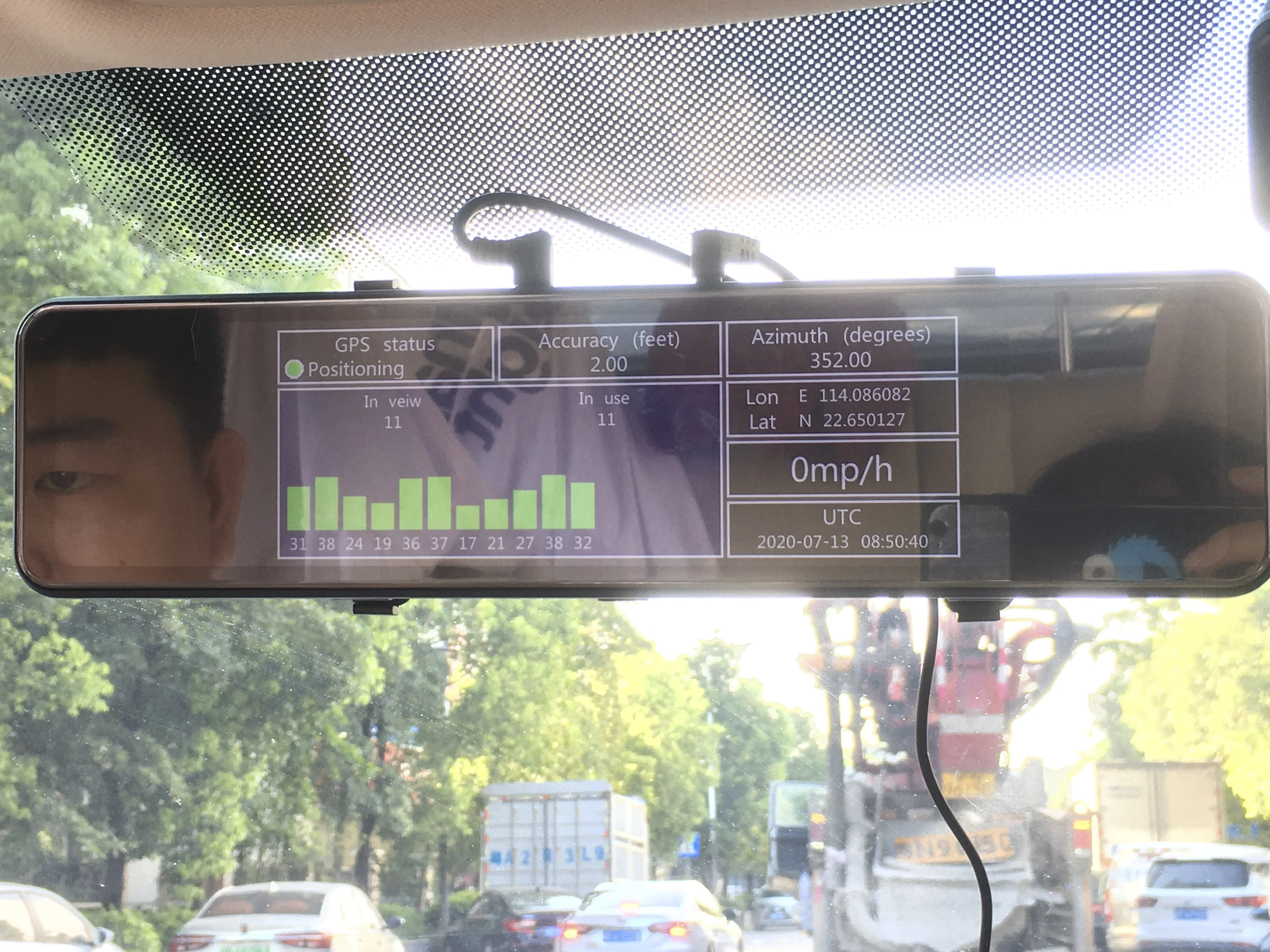

GPS Module Included
Equipped with a GPS antenna and you can see the real-time speed and vehicle trajectory, which help to record real time location, current driving track and driving speed. A reliable evidence when traffic accident happened.
Attention: Download the GXPLAYER GPS APP via our offered URL. After the installation is successful, you can play video on the PC side through this GXPLAYER APP.
After you plug in the GPS antenna, please open the menu and find “Time Zone”, and adjust the time zone according to your country.
Overspeed settings: 49MP/H, 55MP/H, 62MP/H, 74MP/H, 80MP/H, 86MP/H, 93MP/H, 99MP/H. You can set the speed reminder in the menu, when the speed exceeds this standard, The machine will emit a warning beep sound (just a simple beep sound, not a voice reminder).
( Attention: After you insert the GPS antenna, please open the menu to find the speed unit, please select “KM/H”, otherwise the speed will not be displayed.）
1080P Rear Camera
SONY IMX 415 4K 3840×2160P & 1920x1080P Rear Camera
Slide the Screen Up and Down to Adjust the Viewing Angle
Swipe right to switch front and rear cameras
Rear View Camera
Smart rear view angle switch between driving and parking. You could see all further vehicles and objects clearly behind you while real-time driving and it will lower the rear view angle automatically to give a closer backup image when parking.
Watch recorded videos and pictures taken on the recorder
Swipe the screen to the left. You can choose to watch the recorded videos and pictures on the recorder. Or connect the memory card to the computer to watch the recorded videos and pictures. (Hint: The video on the computer is the real sharpness, and the one viewed on the recorder is not as sharp as the computer.)
24H Parking Monitor
When someone near your car or vehicle starts to move, Automatically turn on and start recording when detects any impact or collision, the device automatically automatically recording for few seconds, make sure 24hr Parking Guard. Attention: It should be connected by a hardwire， please buy our 24h parking monitor cable
24H Parking Monitor Cable Connection
Use the buck line to not occupy the cigarette lighter interface.
First, connect the negative pole(black line) of the buck line to the ground of the car fuse box;
Secondly, if you want to continue monitoring after parking (the DVR works 24 hours), connect the yellow cable to the BAT interface of the car fuse box;
If you want to stop monitoring after parking (the DVR does not work after parking), connect the red line to the fuse box ACC interface.
Time-lapse Video Function
Time-lapse video can be continuously recorded for 24 hours, more secure and convenient.
Easy to look back at the video.
No need to format the memory card often.
(Note: Need to buy Buck line)
Loop Recording + G-sensor
G-sensor – Powered automatic video recording and video file locking when a collision or crash is detected. The sensitivity of the G-sensor can be set to different levels. Loop Recording Function- Ensures continuous recording without missing a second, record automatically during vehicle ignition, switch off automatically with ignition off to get you free from the hands operation.
